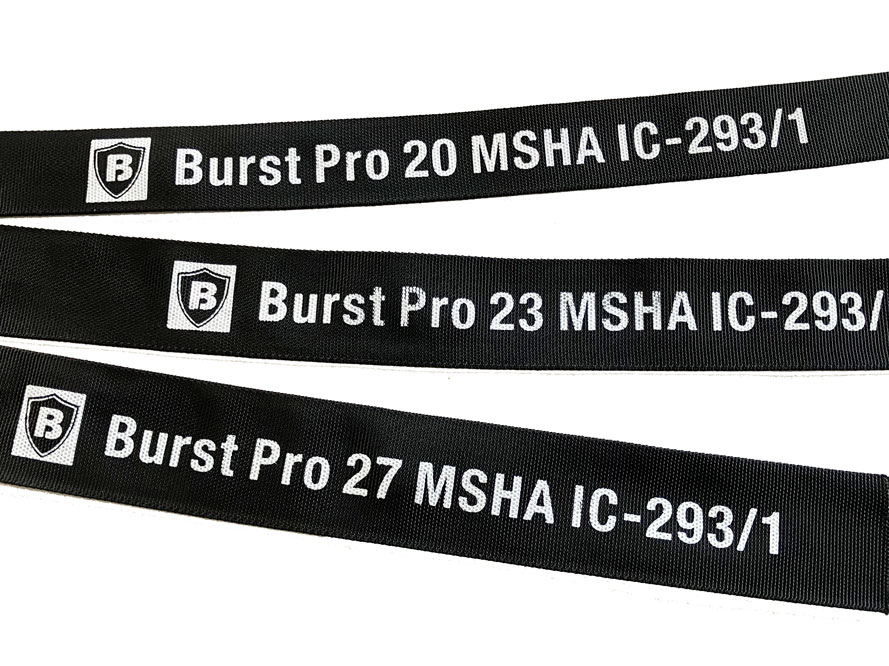

Burst Pro - Per Roll
Description

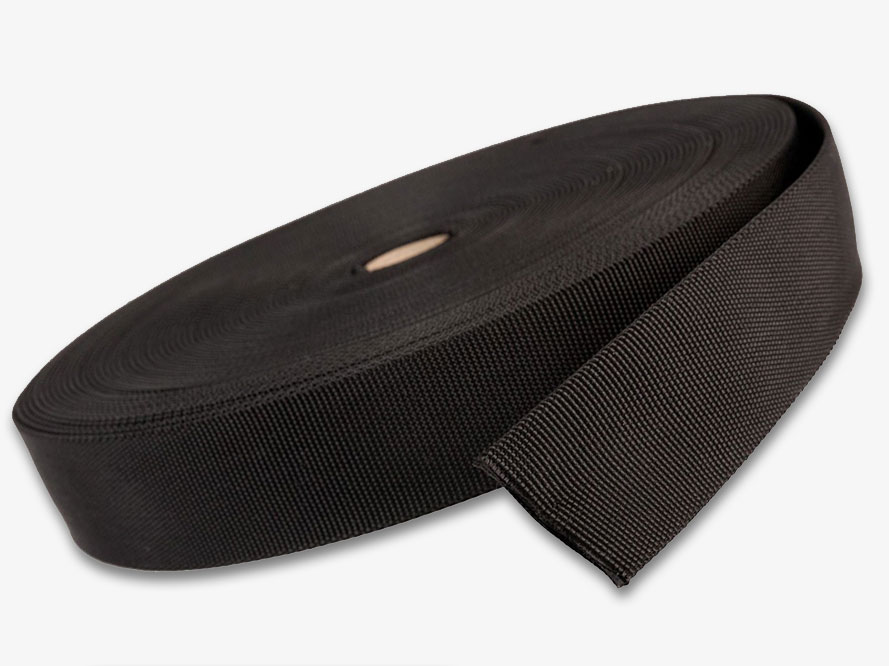

Sold in 50m rolls

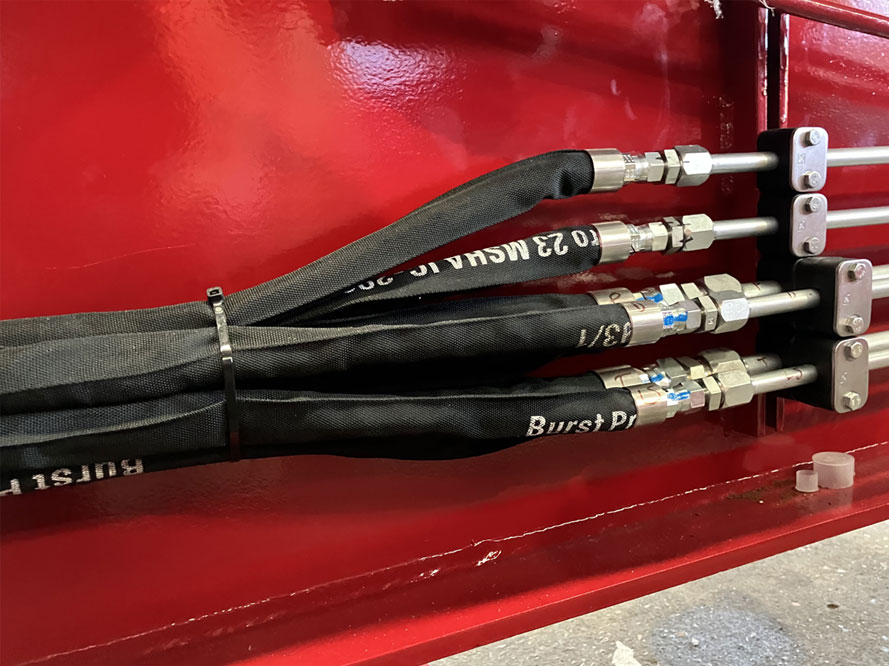

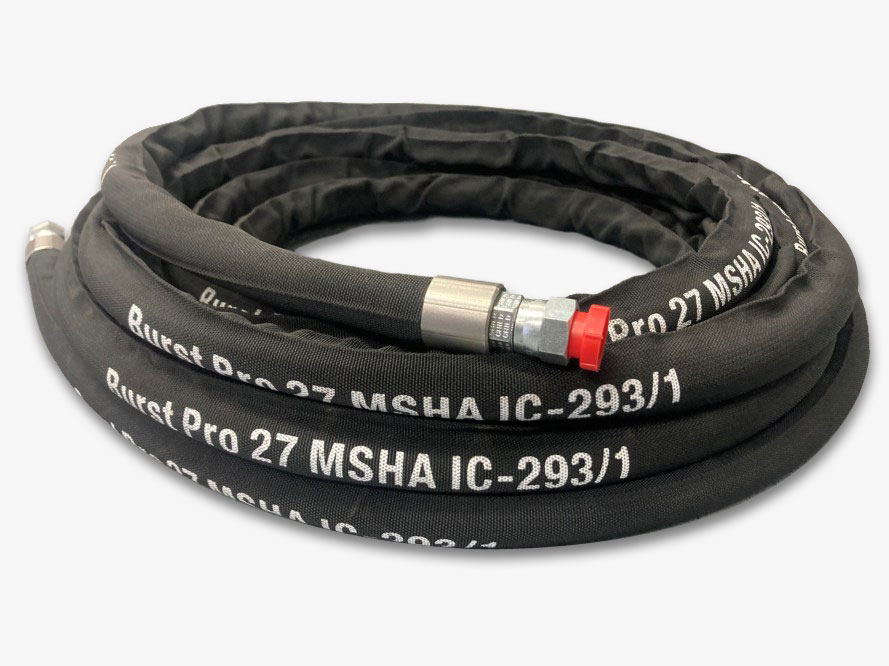

Burst Pro burst protection sleeve is designed to protect against hydraulic fluid injection that can be a very severe injury by creating a protective layer when fitted over hydraulic hoses in the instance of a pin hole or burst hose. The tight woven construction can provide excellent abrasion resistance and high degree of burst resistance.
Application

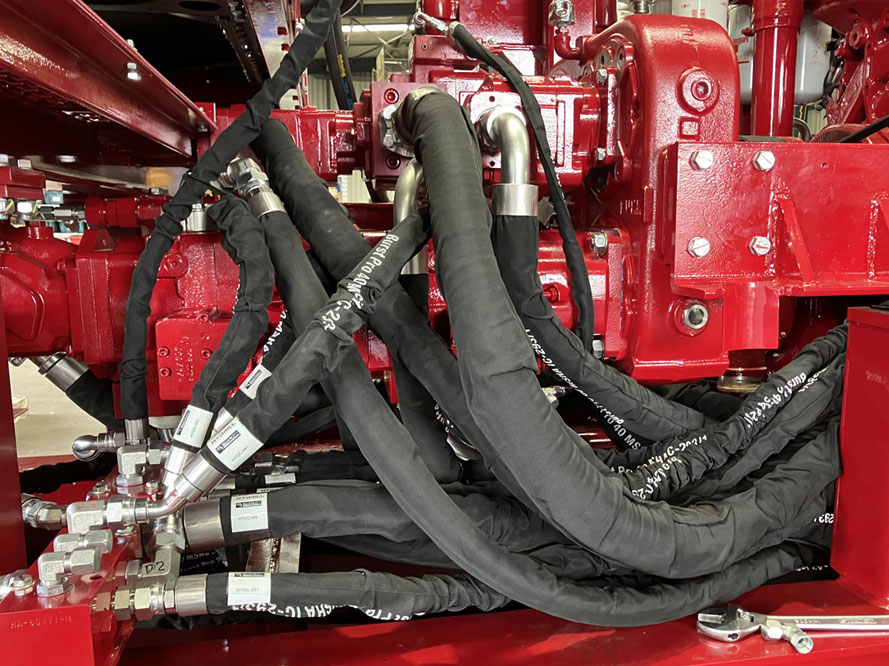

It is widely used in the mining and drilling industries to protect the hydraulic hose from wear and avoid people getting hurt due to high pressure liquid spray.
Diameter
:
20 mm
SKU
:
BP-020-ROLL
Quantity
$220.00
Price incl. Tax (10%)
Technical Specifications
Material
:
Nylon (polyamide)
Thickness
:
0.8 mm
Melting Point
:
230°C
Operating Range
:
40°C~+125°C(the sleeve loses 10% of the resistance at 125°C)
MSHA Approved
:
lC 293-1
Abrasion Standard
:
ISO 6945 approved, minimally 50,000 cycles
UV Solar Protected
:
BS EN 13758-1
Burst & Leakage Protected
:
SAE J343 / ISO 3457
Conductivity Requirement
:
ISO 8031 approved pin hole test approved
